Types of Plumbing Systems: What Homeowners and Pros Need to Know

TL;DR:

• Buildings contain three core plumbing systems: potable water supply, drain-waste-vent, and stormwater drainage, each with distinct functions and materials. Correctly identifying and maintaining these systems ensures safety, reliability, and code compliance, while misdiagnosis can lead to costly repairs. Always consult licensed professionals for complex or critical plumbing work and verify local regulations before proceeding.

Every building contains three core plumbing systems: potable water supply (pressurized delivery of drinking water), drain-waste-vent or DWV (gravity-driven removal of wastewater and sewage), and stormwater drainage (roof and surface runoff control). Commercial buildings add specialty systems including hydronic heating loops, fire-suppression sprinklers, and gas distribution. Understanding which system does what prevents misdiagnosis and costly repairs.

TL;DR — System categories at a glance:

• Potable water supply — pressurized delivery of drinking and service water to fixtures
• DWV (drain-waste-vent) — gravity drainage of wastewater plus venting to prevent sewer gas
• Stormwater drainage — roof, surface, and subsurface runoff, kept separate from sanitary lines
• Specialty systems — hydronic heating, fire suppression, gas distribution, medical gas, graywater reuse

The sections below expand each system, cover common pipe materials, explain U.S. code requirements, and identify the signs that mean call a licensed plumber.

Table of Contents

• 1. How the three core plumbing systems actually work
• 2. Building configurations: how plumbing is routed through a structure
• 3. Pipe materials: what to use where
• 4. Specialty and commercial plumbing systems
• 5. How plumbing systems interact and where problems cross boundaries
• 6. U.S. regulatory context: IPC, UPC, permits, and the AHJ
• 7. When to call a licensed plumber or engineer
• Key Takeaways
• A practical perspective on plumbing system decisions
• Authoritative sources and further reading

1. How the three core plumbing systems actually work

Every building’s plumbing divides cleanly into two functional halves: a pressurized supply side and a gravity-driven drainage side. Keeping that mental model in place makes troubleshooting faster and safer.

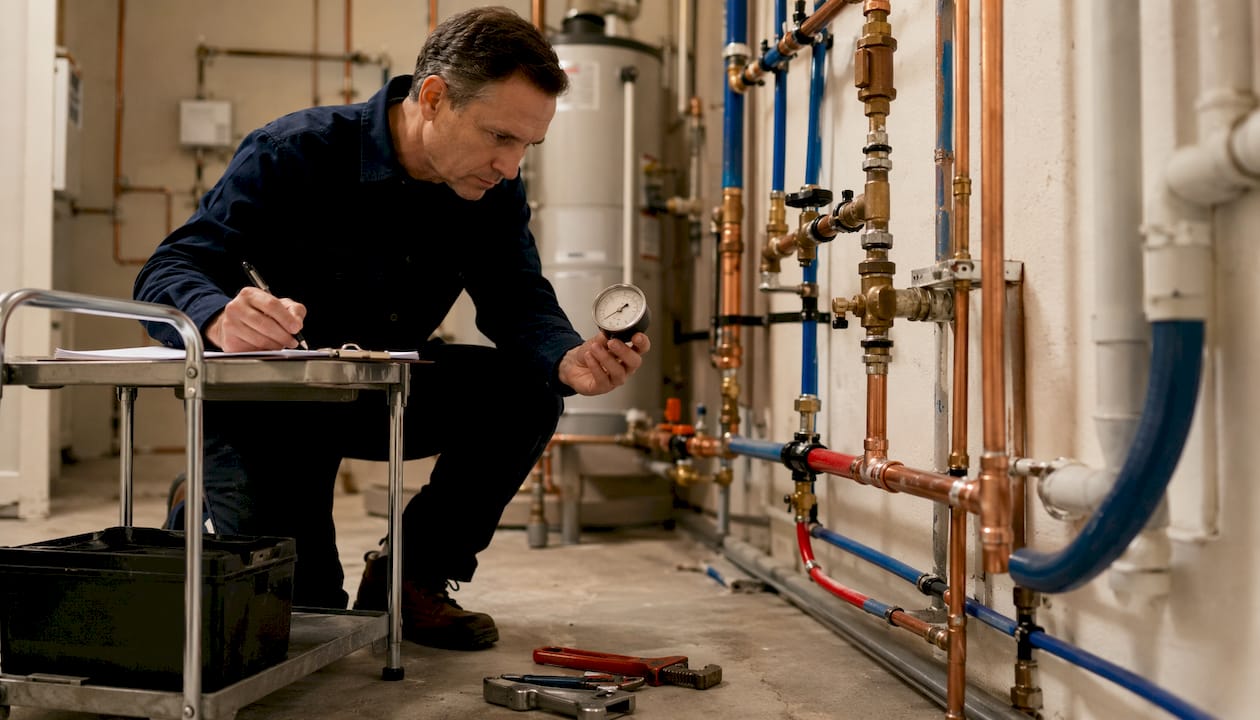

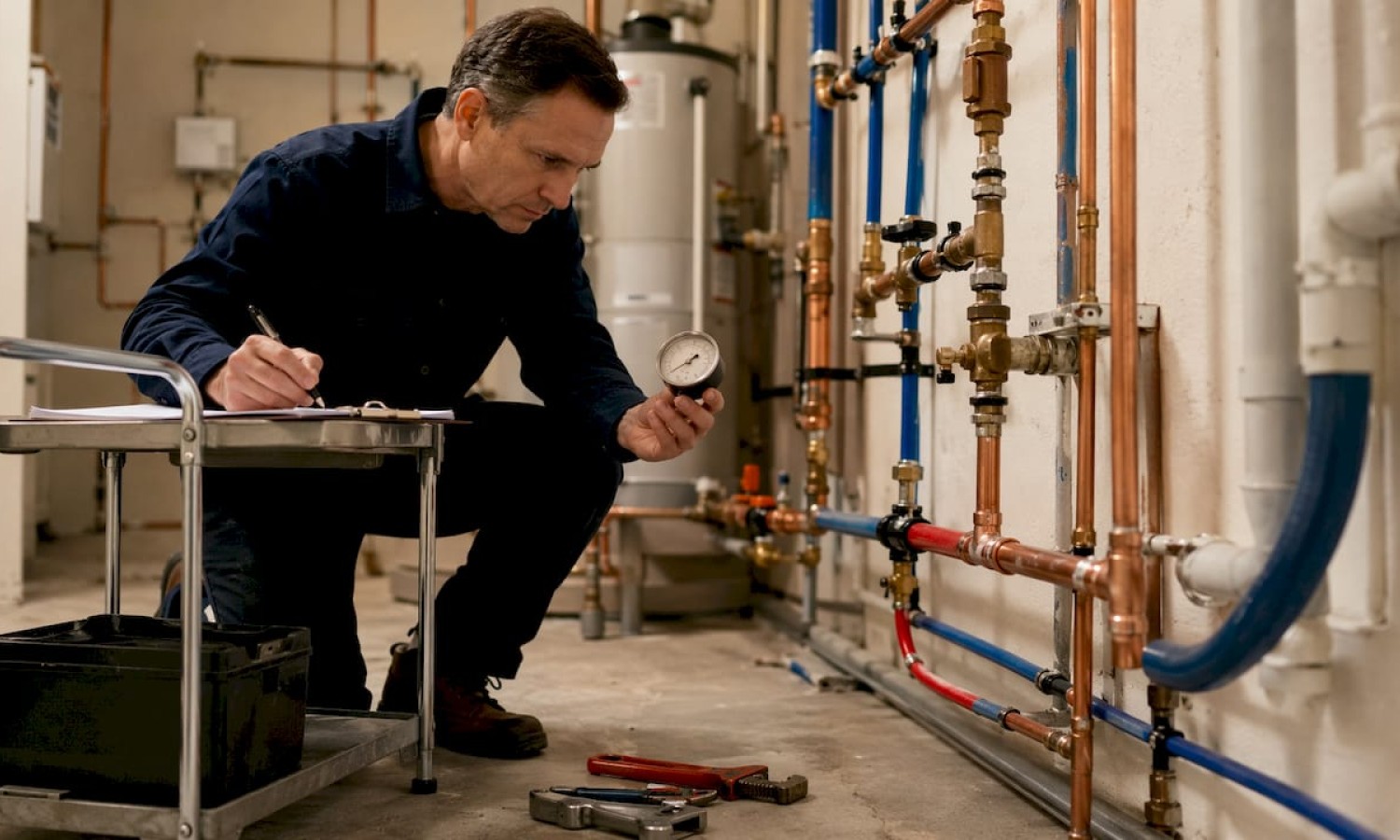

Potable water supply

The municipal service line enters the building under pressure (typically 40–80 psi), passes through a meter and a main shut-off, then branches to cold-water fixtures and to the water heater for hot distribution. Key components include the service line, pressure regulator, distribution branches, shut-off valves at each fixture group, and the water heater. Common failure modes: pinhole leaks from corrosion, pressure-regulator failure causing high-pressure damage, and frozen pipes in uninsulated runs. For a detailed look at sizing and distribution planning, the water supply planning guide covers service sizing from first principles.

Drain-waste-vent (DWV) / sanitary drainage

DWV lines carry wastewater from fixtures to the sanitary sewer or septic system by gravity, which means every horizontal drain run must slope (typically ¼ inch per foot). Each fixture connects through a trap that holds a water seal, blocking sewer gas from entering occupied spaces. The drain stacks run vertically to the building drain, which exits to the sewer. For a thorough breakdown of how building drainage systems are configured, that guide covers stack sizing and trap requirements in detail.

Venting: the most misunderstood component

Vent pipes extend from the drain system up through the roof, admitting air so gravity drainage can flow without creating a siphon that pulls water out of traps. Improper or missing venting is a leading cause of slow drains, gurgling sounds at fixtures, and sewer gas infiltration into living spaces. Plumbers consistently identify vent design as the component building owners understand least.

Stormwater drainage

Roof drains, gutters, and downspouts collect precipitation and direct it away from the foundation through a separate drainage path. Stormwater must not connect to the sanitary sewer in most U.S. jurisdictions; combined systems exist in older cities but are being phased out. Blocked gutters are the most common cause of stormwater backing up against foundations and infiltrating crawl spaces.

System comparison at a glance:

Pro Tip: Check every accessible cleanout and vent cap twice a year. A blocked roof vent cap is the single most common cause of whole-house slow-drain complaints and costs nothing to clear.

2. Building configurations: how plumbing is routed through a structure

The physical arrangement of drain and vent pipes varies by building type, age, and occupancy. Recognizing the configuration tells you immediately where to look when something fails.

Two-pipe systems

Two-pipe systems run separate soil/waste stacks and dedicated vent stacks in parallel. Each fixture group connects its drain to the soil stack and its vent to the vent stack. This is the most reliable configuration for multi-story buildings because venting is independent of drainage flow, but it uses more pipe and more wall space.

One-pipe systems

One-pipe systems use a single stack that carries both waste and acts as the vent. Fixtures connect at specific angles and distances governed by code to prevent self-siphonage. Simpler and less expensive to install, but more sensitive to fixture-unit loading and more prone to venting problems when fixture counts increase.

Single-stack systems

A single-stack system routes all waste and soil through one vertical pipe with no separate vent stack. Venting relies on the stack diameter and carefully controlled branch connections. Common in single-family homes and low-rise residential construction. Maintenance is straightforward, but adding fixtures later requires careful hydraulic review.

Single-stack with partial ventilation

A hybrid: the main stack handles drainage, but individual branch vents are added only at the fixtures most susceptible to siphonage (typically toilets and floor drains on lower floors). Balances cost savings against venting reliability. Frequently used in light commercial and mid-rise multi-family construction.

Single-family homes commonly use single-stack or multi-stack DWV configurations; multi-family and light commercial occupancies introduce risers and shared systems with higher fixture-unit loads, which typically require the two-pipe or partial-vent approach.

Configuration selection guide:

For step-by-step guidance on laying out interior distribution and fixture connections, the interior plumbing design guide walks through the process in practical terms.

3. Pipe materials: what to use where

The five most common piping materials in modern U.S. residential systems are PEX, CPVC, PVC, ABS, and copper, each suited to specific applications. Galvanized steel and cast iron appear in older buildings and are rarely specified for new work.

ASPE recommends prioritizing compatibility with local water chemistry over upfront material cost. Aggressive or highly chlorinated water can cause premature failure in materials that look cheaper on the bid sheet but require early replacement.

Material selection reference:

PEX is widely used in many single-family homes due to its flexibility, freeze resistance, and ease of installation in the U.S., driven by its flexibility, freeze resistance, and lower installation labor compared with rigid pipe. Copper has declined in new residential construction because of higher material and labor costs, though CPVC remains a strong choice where chlorinated domestic water is a concern.

Braided stainless supply tubes and plastic supply tubing are appropriate only for final fixture connections. They are not permitted inside wall cavities or under floors for permanent runs.

Pro Tip: For retrofit work in existing homes, PEX is the contractor’s first choice: it snakes through walls without open-stud access. For new construction with aggressive local water, CPVC or copper is worth the premium. Never use braided flex supply tubes for anything except the last 12–18 inches connecting a fixture to the shut-off valve.

4. Specialty and commercial plumbing systems

Beyond the three core systems, commercial and some multi-family buildings include specialty systems that require engineered design, third-party inspection, and licensed specialty contractors.

• Hydronic heating loops — closed-loop piping circulates heated water from a boiler to radiators or radiant floor panels. Requires pressure testing, expansion tanks, and balancing valves. Pipe materials are typically copper or cross-linked polyethylene (PEX-AL-PEX).
• Wet-pipe and dry-pipe fire-suppression sprinklers — wet-pipe systems keep pipes charged with water at all times; dry-pipe systems use pressurized air and are used in unheated spaces. Both are governed by NFPA 13 and require third-party inspection at installation and periodic testing.
• Gas distribution (natural gas / LPG) — black iron pipe is the traditional material for residential and light commercial gas lines. Gas systems operate under pressure and require pressure testing and permit inspection before concealment. Any gas-scent detection is an immediate emergency.
• Medical gas systems — found in healthcare facilities; oxygen, nitrogen, and vacuum lines require ASME/ASSE 6000-series certification for installers and materials, plus third-party verification.
• Graywater and reclaimed-water systems — graywater from sinks and showers is collected, treated, and reused for irrigation or toilet flushing. Purple pipe identifies reclaimed water lines to prevent cross-connection. State adoption of graywater codes varies; check local AHJ before designing any reuse system.

Commercial buildings also introduce grease interceptors, higher fixture-unit counts, floor drains, and pressure-zone valves for tall buildings, all of which increase design complexity and typically require stamped engineering drawings.

5. How plumbing systems interact and where problems cross boundaries

Viewing plumbing as two halves — pressurized supply and gravity-driven DWV — helps triage problems faster, because failure modes and repair urgency differ sharply between them. A pressurized supply leak demands immediate action; a slow drain may allow a scheduled repair. But some failures cross that boundary and mislead diagnosis.

Cross-system failure patterns:

• A blocked roof vent looks like a supply-pressure problem (slow flow at fixtures) but is entirely a DWV issue.
• Overloaded or blocked stormwater drains can saturate soil around the foundation, increasing hydrostatic pressure on sanitary cleanouts and causing backups.
• Backflow from a contaminated source into the potable supply is a cross-connection hazard; pressure drops during main breaks can pull non-potable water backward through unprotected connections.
• Gas line corrosion near a water line can be accelerated by moisture from a slow supply leak, creating a compound hazard.

Symptom triage checklist:

• Gurgling at multiple fixtures simultaneously — suspect a blocked or undersized vent stack
• Slow drains building-wide — check the main cleanout before assuming individual clogs
• Foul odors without visible sewage — dry traps or a cracked vent pipe
• Low pressure at all fixtures — pressure regulator failure or main service issue
• Wet spots near the foundation — stormwater drainage failure or sanitary line leak

Basic maintenance steps that reduce cross-system failures:

• Clean gutters and downspouts twice a year to keep stormwater moving away from the building
• Exercise main and zone shut-off valves annually so they operate when needed
• Schedule a camera inspection of the main sewer line every 5–7 years in homes over 20 years old
• Verify that all floor drains have water in their traps; dry traps admit sewer gas

6. U.S. regulatory context: IPC, UPC, permits, and the AHJ

Plumbing in the U.S. is governed primarily by two model codes: the International Plumbing Code (IPC), published by the International Code Council, and the Uniform Plumbing Code (UPC), published by the International Association of Plumbing and Mechanical Officials (IAPMO). Neither code is federal law. Each state and municipality adopts, amends, and enforces its own edition, so the code in force in your jurisdiction may differ from the current published edition.

Key regulatory principle: The Authority Having Jurisdiction (AHJ) — your local building or plumbing department — has final say on which code edition applies, what permits are required, and which inspections must be completed before concealing work. Always confirm the adopted code edition and permit requirements with the AHJ before starting any plumbing project. For a current overview of permit and code-adoption requirements, see the plumbing regulations guide.

Commercial projects and larger multi-family buildings commonly require stamped, engineered drawings prepared by a licensed engineer before a permit is issued. Residential work on existing systems often proceeds under standard code tables without engineered drawings, but adding fixture groups, changing occupancy, or installing specialty systems (sprinklers, hydronic heating) typically triggers the engineered-drawing requirement.

Practical steps before any permitted plumbing work:

1. Contact the local AHJ to confirm the adopted code edition and permit application process.
2. Determine whether backflow prevention devices or pressure-reducing valves are required for the scope of work.
3. Confirm inspection stages (rough-in, pressure test, final) and schedule them before concealing any piping.

7. When to call a licensed plumber or engineer

Some plumbing tasks are appropriate for a knowledgeable homeowner. Others require a licensed plumber or a licensed engineer, and misjudging the line creates safety hazards and code violations.

Call a licensed plumber immediately if you observe:

• Any pressurized water leak inside a wall, ceiling, or floor
• Sewage backup at a floor drain or toilet
• Persistent gurgling at multiple fixtures after basic drain clearing
• Any detectable gas odor near appliances or piping
• Visible corrosion or pinhole leaks on supply lines

Involve a licensed plumber for planned work when:

• Adding a new fixture group (bathroom, laundry, kitchen)
• Replacing a water heater with a different fuel type or capacity
• Installing a pressure-reducing valve or backflow preventer
• Rerouting supply or drain lines during a renovation

Bring in a licensed engineer when:

• The project involves a commercial occupancy or multi-family building with more than a few units
• Sprinkler system design or modification is required (NFPA 13 scope)
• Hydronic heating system design involves multiple zones or pressure calculations
• The AHJ requires stamped drawings for permit issuance

Questions to ask at first contact with a plumber or contractor:

• Are you licensed and insured in this state?
• Will you pull the permit and schedule inspections?
• Have you done similar work (same system type, same occupancy)?
• Can you provide references from comparable projects?

For a practical overview of what homeowners can safely handle themselves versus when professional involvement is required, the step-by-step plumbing DIY guide sets clear boundaries.

Key Takeaways

Every building contains three distinct plumbing systems — potable supply, DWV, and stormwater — and choosing the right pipe material and configuration for each system determines long-term reliability and code compliance.

A practical perspective on plumbing system decisions

The mistake I see most often on job sites is treating all plumbing as one system. A contractor replaces a section of supply line and assumes the slow drain complaints will resolve. They do not, because the drain and the supply are separate systems with separate failure modes. The supply side is pressurized and fails fast and visibly. The DWV side fails slowly, often over years, through partial blockages, degraded trap seals, and vent obstructions that nobody notices until the odor becomes undeniable.

The practical rule of thumb worth keeping: always identify which system the symptom belongs to before touching anything. Gurgling and odors are DWV problems. Low pressure and wet spots are supply problems. Stormwater issues show up at the foundation and in the crawl space, not at fixtures. Once you have the right system identified, the repair path is usually straightforward.

Material selection follows the same logic. PEX for new residential supply runs is the right default in almost every case: flexible, freeze-resistant, and fast to install. Where local water is aggressive or highly chlorinated, CPVC earns its slightly higher price. For DWV, PVC is the standard; ABS is acceptable where local code permits it. Never use braided flex supply tubes for anything except the final fixture connection.

For sourcing quality fixtures, fittings, and pipe materials for residential and commercial projects, Santehnikasveikals carries a broad catalog of plumbing components, from supply fittings and DWV parts to heating system components, with delivery available for contractors and homeowners alike.

Authoritative sources and further reading

The resources below cover code text, material guidance, and design references for U.S. plumbing systems.

• Wikipedia: Plumbing — broad reference covering system categories, pipe material history, and fixture definitions; useful for terminology and historical context.
• ASPE: Choosing plumbing systems for residential construction — practitioner guidance on material selection relative to water chemistry and long-term cost; authoritative for contractors and engineers.
• National Plumbing Authority: Types of plumbing systems — overview of residential and commercial system classifications, fixture-unit concepts, and code context.
• The Spruce: Types of home plumbing pipes — practical homeowner-level breakdown of pipe materials, applications, and selection guidance.
• Oatey: Types of plumbing pipes for residential systems — material-by-material guide covering supply, DWV, and gas piping with connection method notes.
• Lowe’s: Pipe type buying guide — concise reference for Schedule 40/80 PVC, CPVC, PEX, and ABS with code-compliance notes.
• Santehnikasveikals: Plumbing regulations guide — current overview of permit requirements and code-adoption considerations for builders.
• Santehnikasveikals: Building drainage system guide — detailed reference on DWV configuration, stack sizing, and trap requirements.
• International Code Council (ICC) — publishes the IPC; the ICC website provides code adoption maps by state and access to the current code edition.
• IAPMO — publishes the UPC; the IAPMO website provides the current UPC text and state adoption status.

Always verify the specific code edition adopted by your local AHJ before finalizing any plumbing design or permit application.
